Panel slab formwork
ARACON supreme
An aluminium panel deck carried on heavy-duty props with integrated dropheads. No component in the system weighs more than 20 kg.
Where supremesits

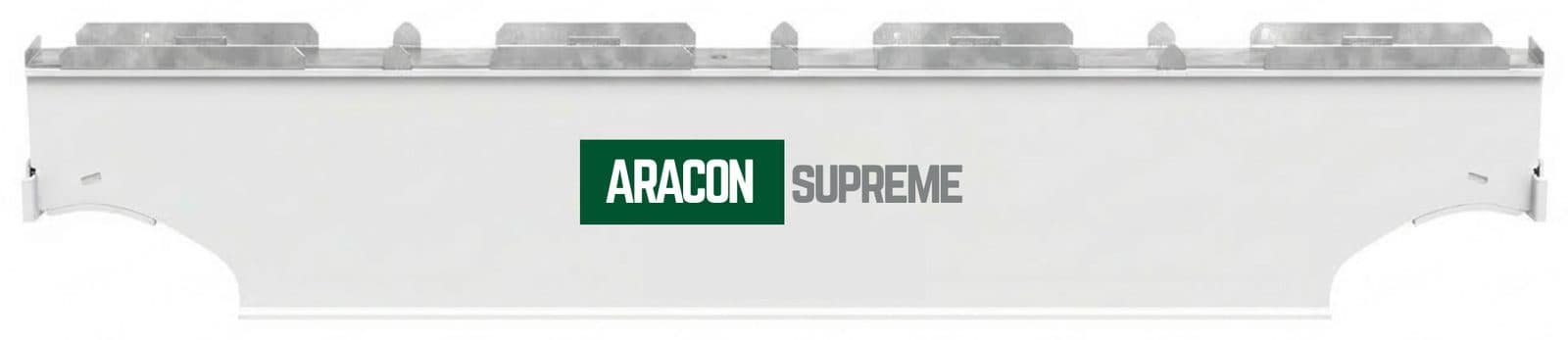

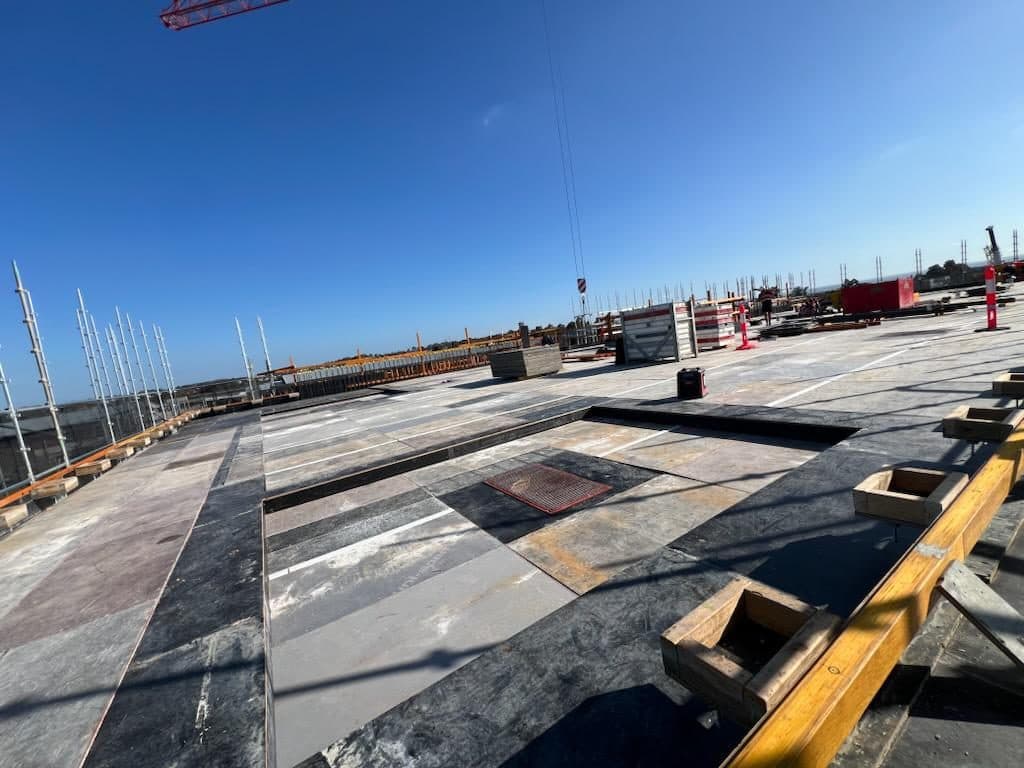

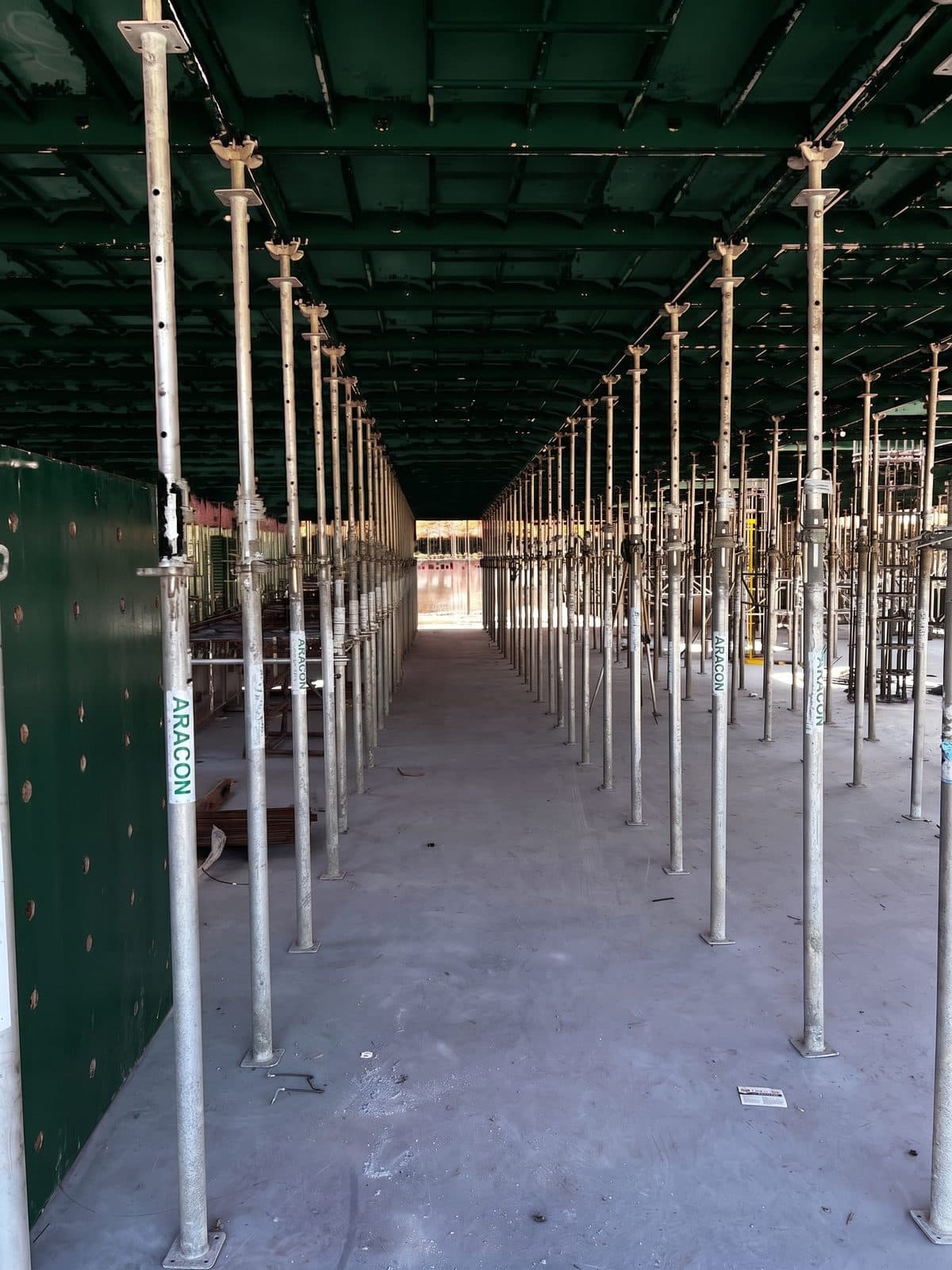

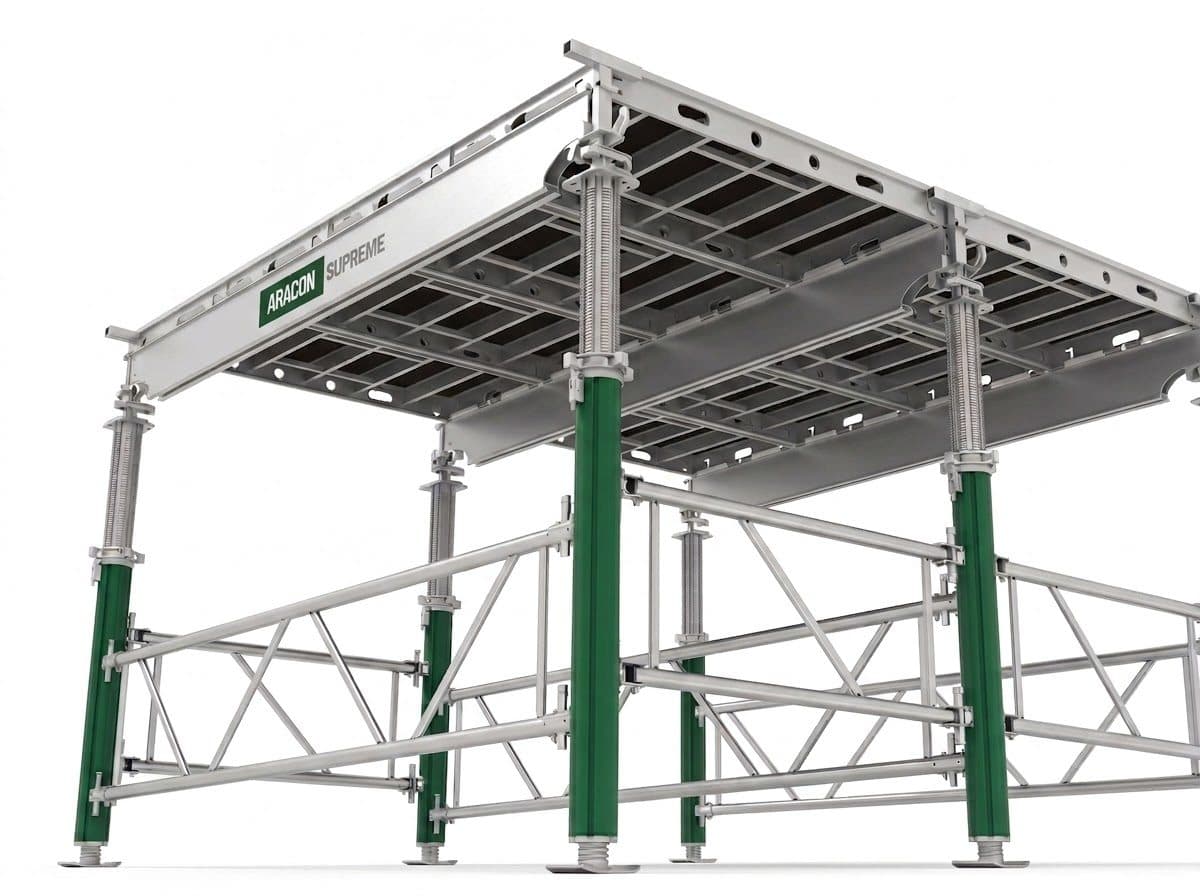

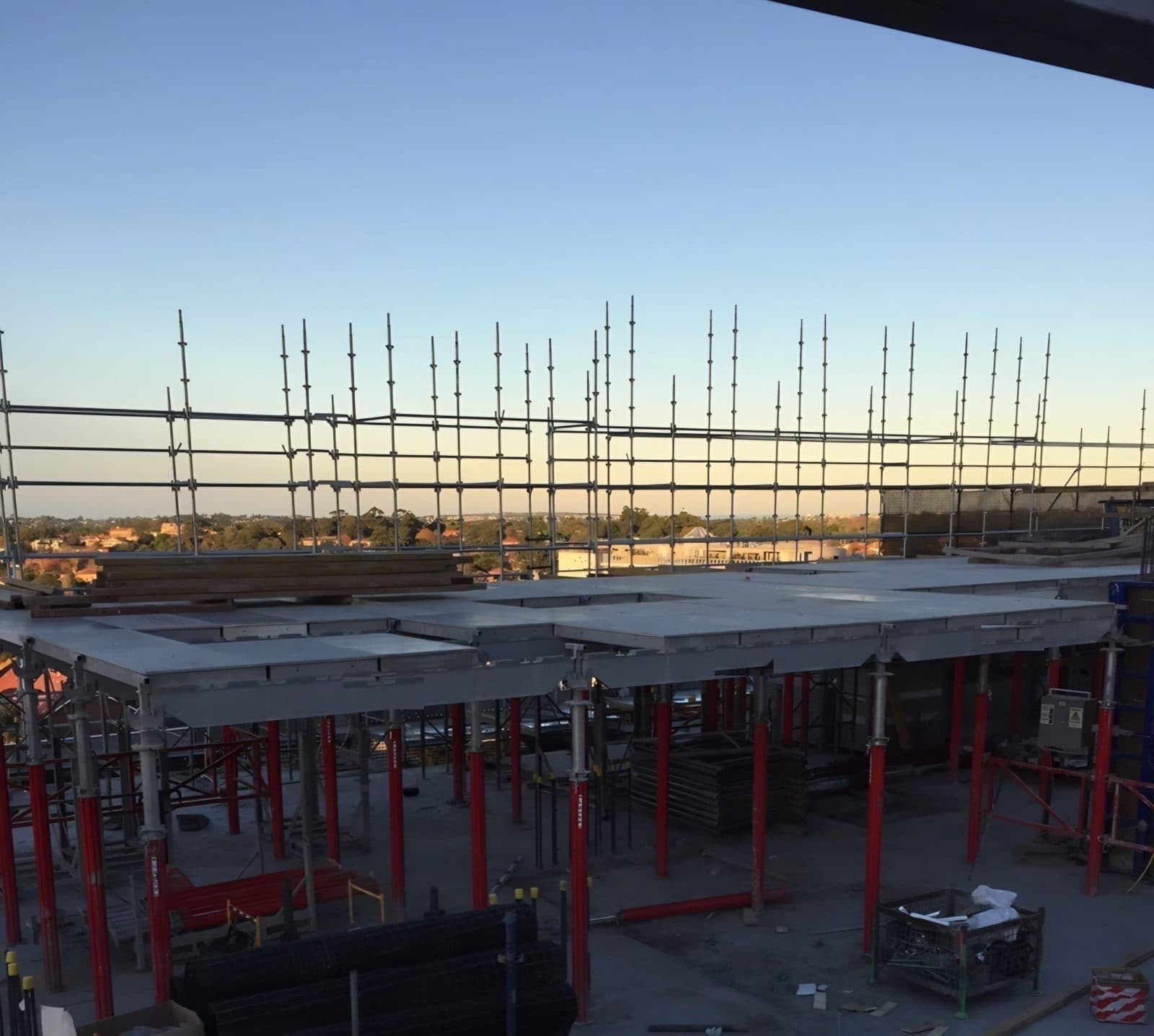

Supreme is the panel deck in the range. Interlocking modular panels are joined by toothed section beams and carried on aluminium props with dropheads built into the head, so the deck is assembled as a system rather than built up out of bearers, joists and loose timber.
Nothing in it weighs over 20 kg. That is the figure the system is designed around: it keeps the deck inside manual handling limits, and it keeps a floor turning around without a crane standing over the slab.
The perimeter and the closures are the part every panel deck has to solve. Supreme takes timber infills on its own fixed heads, combined heads and drophead stirrups, and picks up columns on shimming profiles, so the edge is made up with the system instead of against it.
Specification
- Maximum component mass
- 20 kg
- Frame and panel material
- High-strength aluminium
- Prop head
- Integrated drophead
- Panel connection
- Interlocking panels on toothed section beams
- Perimeter and closure
- Timber infills on fixed heads, combined heads and drophead stirrups
- Columns
- Picked up on shimming profiles
These describe the range as it is supplied today. They are being confirmed against ARACON supply from our Italian and Chinese manufacturing partners and may change. A further 6 values are held until the ARACON datasheet is signed. Ask for the specification as it stands today and it will be sent.
